Introduction to FRP Filament Winding
What is FRP Filament Winding?
FRP (Fiber Reinforced Plastic) filament winding is a way to make tough, light, and long-lasting structures. It works by wrapping continuous fiber strands, soaked in resin, around a spinning mold to create round or ball-shaped items. The fibers are placed carefully in certain directions to get the strength needed.
Key Benefits of FRP in Manufacturing
FRP materials have many perks compared to metals or concrete. They’re super light, very strong for their weight, don’t rust, and can be shaped in lots of ways. Adding materials like mortar during winding makes FRP products stiffer and cheaper. Plus, computer-controlled systems keep production exact and steady.
Overview of FRP Filament Winding Process
The filament winding process has a few steps. First, you set up the mold. Then, you soak fibers in resin. Next, you wind the fibers at specific angles. After that, you cure the structure to harden it. Finally, you take the mold out. This method is great for making things like pipes, tanks, and pressure vessels.
Components of FRP Filament Winding Machines
Winding Machine Basics
Key Machine Parts (Spindle, Mandrels, Resin System)
FRP filament winding machines have a few main parts:
- Spindle: Holds and spins the mold while winding.
- Mandrels: Act as the base shape for winding fibers. For big pipes, steel mandrels with FRP surfaces are used because they’re affordable and easy to make.
- Resin System: Make sure fibers get fully soaked in resin for strength.
Types of FRP Filament Winding Machines
Automatic vs. Manual Machines
Automatic machines use smart control systems for accuracy and speed. For example, some have industrial computers to guide the design and sync the mold’s spin with the carriage’s movement. Manual machines need more hands-on work but are good for smaller projects.
Single-axis vs. Multi-axis Machines
Single-axis machines wind fibers in one direction, perfect for simple round shapes. Multi-axis machines are more flexible. They let you wind fibers at different angles across several directions.
The FRP Filament Winding Process
Step-by-Step Guide to Filament Winding
Preparation (Material and Machine Setup)
First, you get the mold ready on the spindle. You also make sure fibers and resin are set to go. The tension system is adjusted to keep fibers lined up nicely.
Winding Process (Fiber Orientation, Resin Impregnation)
Fibers get soaked in resin using a comb-like tray or something similar. The wet fibers are wound onto the mold at set angles for the best strength. Angles usually range from 45° to 90°, based on what the product needs.
Curing and Post-processing
After winding, the structure is hardened with heat or UV light to set the resin. Then, you might trim extra material or add protective coatings.
Common Challenges in the Filament Winding Process
Keeping Fibers Straight
Getting fibers to stay in line is super important for even strength. Smart tension systems help fix this problem.
Handling Resin and Curing
If resin isn’t applied right or curing goes wrong, you might get air bubbles or weak spots. Machines with precise controls make this less likely.
Applications of FRP Filament Winding Machines
Industrial Applications
Aerospace and Automotive Industries
In aerospace and cars, FRP parts are loved because they’re light. This helps save fuel without losing strength.
Pressure Vessels and Pipes
FRPM (Reinforced Plastics Mortar Pipe) production lines make pipes that are light but stiff, thanks to mortar layers. These pipes are used in water systems, sewage plants, and chemical factories.
Emerging Applications
Renewable Energy (Wind Turbine Blades)
FRP filament winding is growing in renewable energy, like making wind turbine blades. It creates big, light structures that work well.
Marine and Offshore Equipment
In salty marine settings, FRP parts like tanks and pipes resist rust, making them tough against harsh conditions.
Choosing the Right FRP Filament Winding Machine
Factors to Consider
Production Volume and Scale

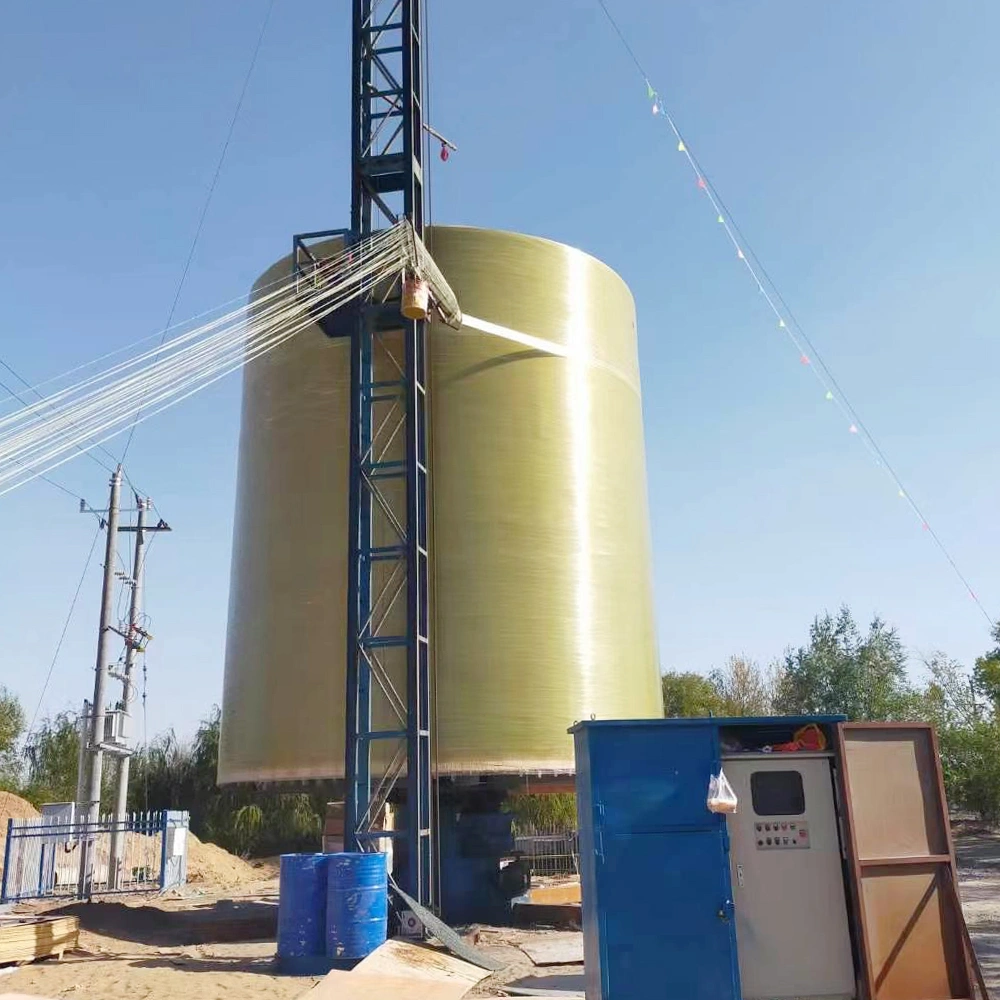

When picking an FRP filament winding machine, think about how much you need to make. Big-production machines often have fancy automation and can handle more. For example, the VFW-25000 computer control vertical site winding machine makes FRP tanks from 4m to 25m wide, great for big jobs in chemical or oil industries. For smaller projects or special products, a manual or semi-automatic machine might be enough.
Machine Customization
Being able to tweak the machine for your needs is a big deal. It can make production smoother. For instance, the FW-300 twin shaft computer control cable casing production line lets you adjust winding angles from 45° to 90° and place fibers precisely. This helps meet different needs while keeping quality high.
Budget and Cost Analysis
Money matters when choosing a machine. You need to balance cost with what the machine can do. Machines with cool features like automatic resin systems or multi-axis winding might cost more upfront. But they save money over time by cutting labor costs and boosting output.
Maintenance and Support Services
Regular Maintenance Tips
Keeping FRP filament winding machines in good shape makes them last longer and work better. Here are some tips:
- Clean resin-covered parts after each run.
- Check tension systems to avoid fiber mix-ups.
- Look at hydraulic systems for leaks or pressure problems.
For example, the oven in the FRP rebar machine has a split design, making it easy to clean dripping resin. Features like this make maintenance simpler.
Key Considerations for Long-term Support
Pick a supplier with great support services. Look for ones offering training, spare parts, and quick tech help. Machines with easy-to-use controls and troubleshooting tools also make fixing issues easier.
Aoliande: Product Categories and Advantages
Overview of Aoliande’s Product Range
Aoliande makes top-quality FRP filament winding machines for all kinds of industrial needs:
- FRPM Pipe Production Line: Includes parts like inner layer makers, curing stations, and resin mixers, with a yearly output of 5000 tons.
- FW-300 Twin Shaft Cable Casing Production Line: Built for precise winding with servo motor-driven trolleys.
- Large-Scale Site Winding Machine: Perfect for making big tanks up to 25m wide.
- FRP Pultrusion Machines: Great for profiles like I-beams, square tubes, and solar brackets.
- FRP Rebar Machines: Automatic systems for making rebars from DN4-40mm.
Unique Advantages of Aoliande’s Solutions
Aoliande’s machines use the latest tech for efficiency and reliability:
- Smart Control Systems: Many machines use Taiwan-made industrial computers for exact design and synced mold and trolley movements.
- Cost Savings: The RPM pipe production line cuts costs by adding mortar layers without losing strength.
- Custom Options: Adjustable parts like sand-adding amounts or winding angles fit different needs.
- Energy Saving: The multi-shaft curing machine uses energy-saving infrared baking boards that can turn off in warm weather to save power.
